ZWO ASI585MM - Monochrome Astrophotography Camera

ZWO ASI585MM - Monochrome Astrophotography Camera

Overview

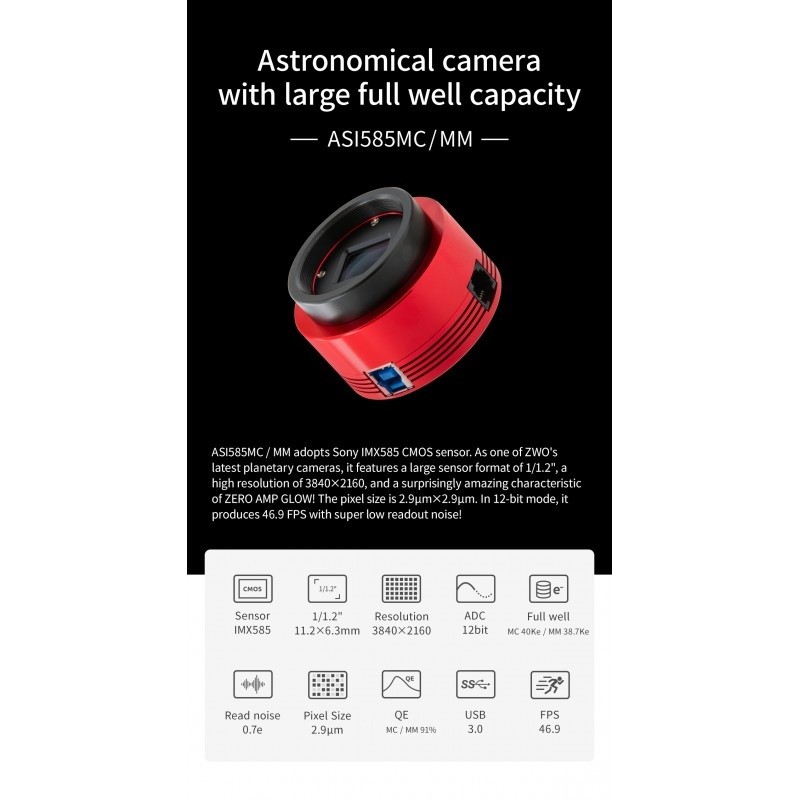

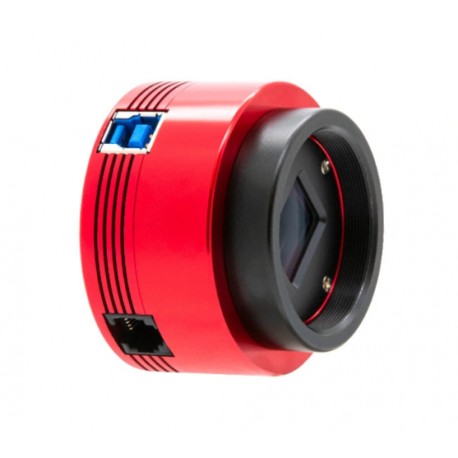

The ZWO ASI585MM is a monochrome astrophotography camera equipped with the Sony IMX585 CMOS sensor. Designed for planetary and deep-sky imaging, it stands out for its high sensitivity and STARVIS 2 technology, which enables exceptional image quality even in low-light conditions. Its low read noise and high quantum efficiency make it an ideal choice for amateur and advanced astrophotographers looking to capture fine details in the night sky.

Technical Specifications

• Sensor: Sony IMX585 monochrome, STARVIS 2 technology

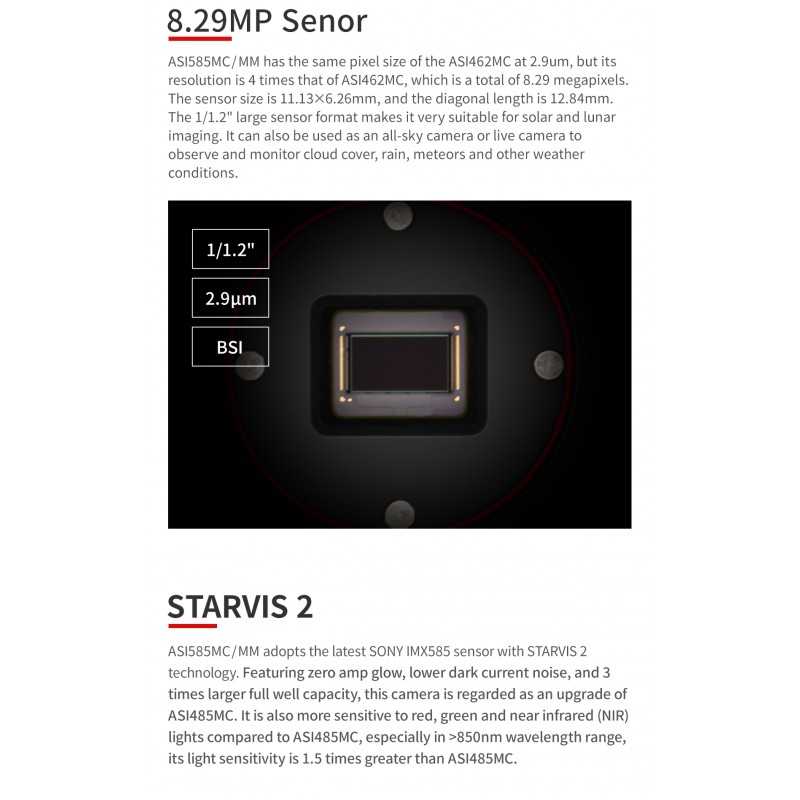

• Sensor format: 1/1.2" (11.2 mm x 6.3 mm)

• Resolution: 8.29 MP (3840 x 2160)

• Pixel size: 2.9 µm

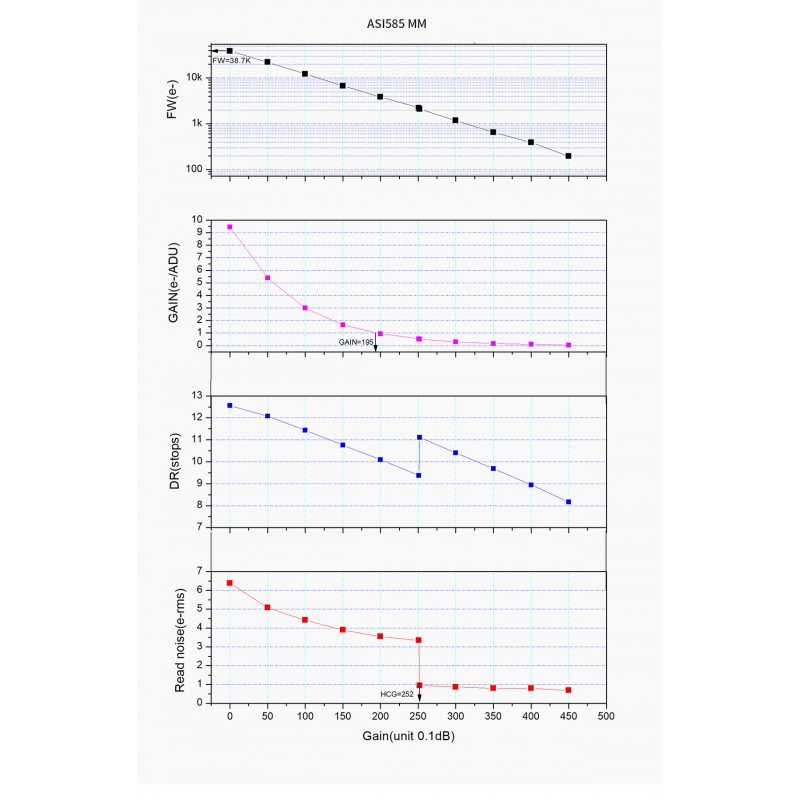

• Full well capacity: 40 ke-

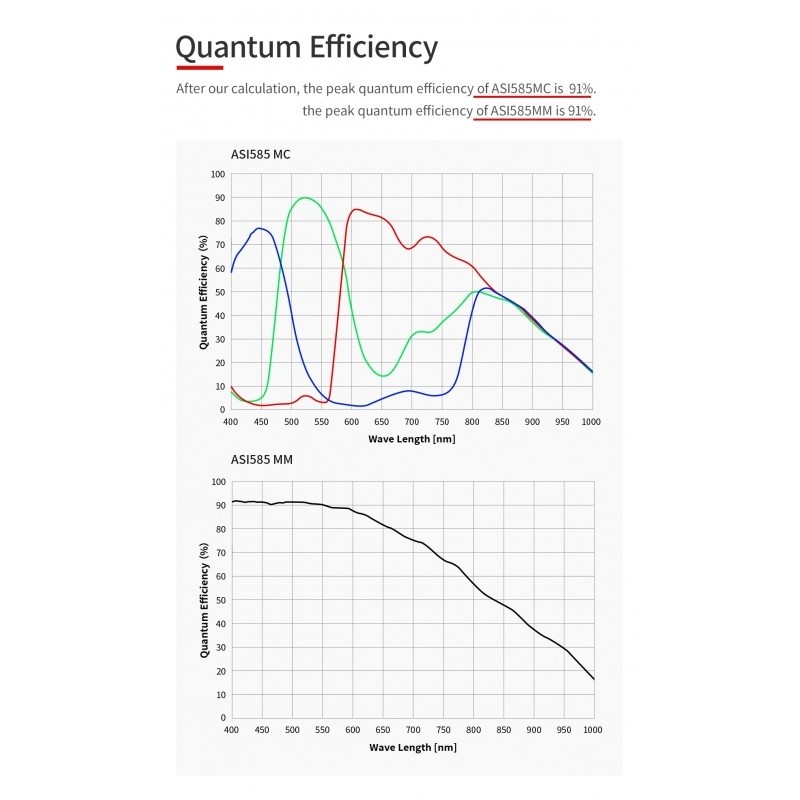

• Maximum quantum efficiency: 91%

• Exposure range: 32 µs to 2000 s

• Interface: USB 3.0, compatible with ZWO and third-party acquisition software

• Cooling type: Uncooled

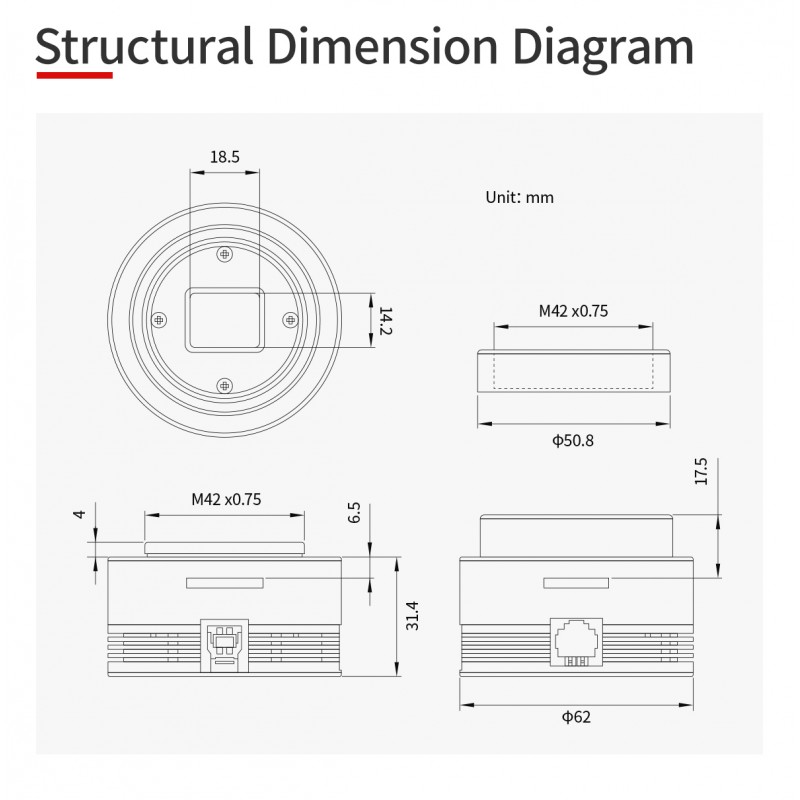

• Optical thread: M42x0.75

• Dimensions: 62 mm diameter

• Weight: 126 g

• Compatibility: Windows, macOS, Linux

Advantages

• Excellent low-light sensitivity: STARVIS 2 technology enhances light capture, ideal for nebulae and galaxies.

• High full well capacity: Reduces star saturation for more detailed images.

• No amp glow: Perfect for long exposures without unwanted artifacts.

• Compact and lightweight: Easily transportable for mobile observations.

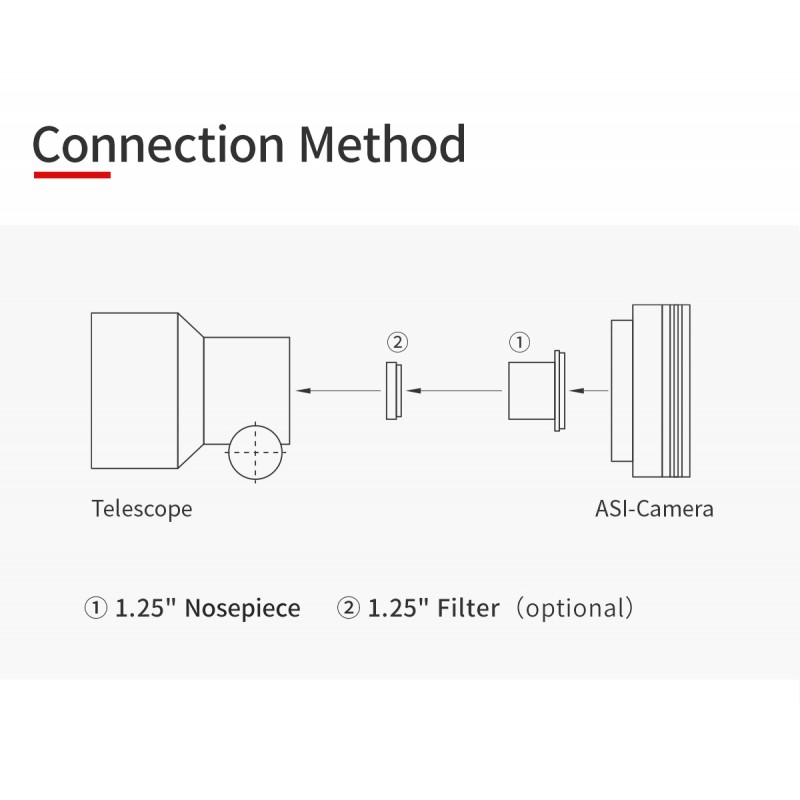

• Filter support: Compatible with filter wheels and narrowband filters for optimized imaging.

Recommended Uses

• High-resolution planetary and lunar imaging

• Deep-sky astrophotography (nebulae, galaxies, star clusters) with suitable filters

• Photometry and astronomical occultations due to its low read noise

• Observation of variable stars and transient celestial events
