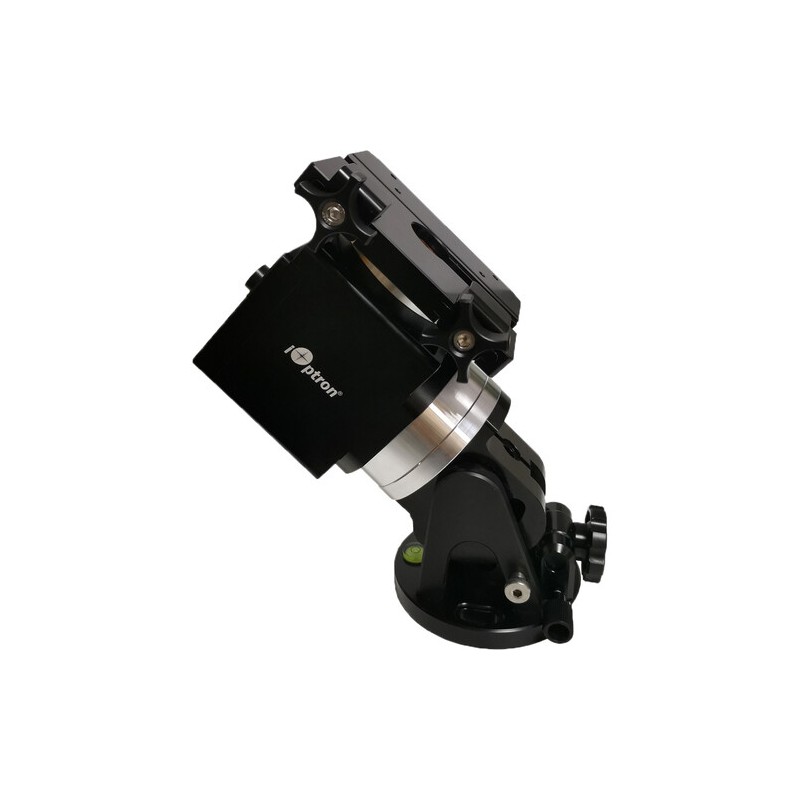

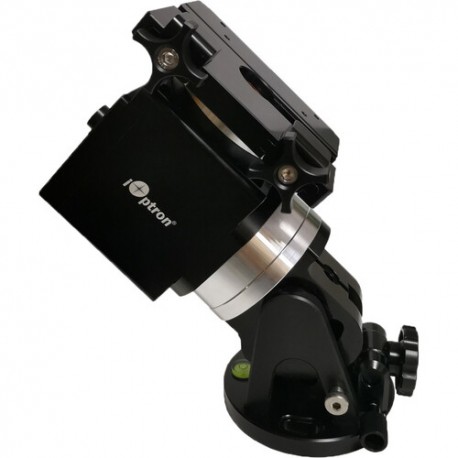

iOptron HAE43 GoTo Alt-Az/Equatorial Mount with iPolar Scope View larger

iOptron HAE43 GoTo Alt-Az/Equatorial Mount with iPolar Scope and hand controller (HE432C)

iOptron - HAE43 (HE432C)

New product

iOptron HAE43 GoTo Alt-Az/Equatorial Mount with iPolar Scope and hand controller (HE432C)

More details

Subject to availability from the supplier. Please contact us for more information.

3'184.00 CHF tax incl.

More info

iOptron HAE43 GoTo Alt-Az/Equatorial Mount with iPolar Scope and hand controller (HE432C)

The HAE43 GoTo Alt-Az/Equatorial Mount with iPolar Scope from iOptron weighs just 12.8 lb yet has a payload of 44 lb without needing a cumbersome counterweight or shaft. Utilizing strain wave drive technology for RA and DEC movement, the HAE43 delivers unparalleled weight-to-payload efficiency. Its black anodized, all-metal CNC machined body is a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power-down memory allow the mount to safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (no need to realign and start from the beginning).

The HAE43 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third-party INDI driver for macOS software; a smartphone/tablet via iOptron Commander Lite or an app like SkySafari; or a Raspberry Pi device via INDI driver.

  • Advanced strain wave gear technology
  • iPolar electronic polar scope for easy and accurate polar alignment
  • Payload capacity of 44 lb
  • CNC-machined metal housing
  • Unique friction brake to safely stop movement if power is interrupted
  • 270-second gear period
  • Go2Nova hand controller with 212,000 object database
  • Customer cable management system ready
  • Dual saddle (Vixen and Losmandy-D styles)
  • Built-in zero position search and locator
  • Power down position and location memory
  • Integrated ST-4 auto-guiding port
  • Built-in Wi-Fi (via hand controller)
  • USB port for firmware upgrade and computer control

IOptron HAE43 Specs

Mount
Mount Type
Alt-Azimuth/German Equatorial
GoTo Capability
No
Payload Capacity
44 lb / 20 kg
Environmental
Operating Temperature
-4 to 104°F / -20 to 40°C
General
Mounting
To Tripod/Base: Dual Losmandy-/Vixen-Type Saddle
Wireless
Yes
Weight
12.8 lb / 5.8 kg

optional tripods
