BRESSER Biolux NV 20x-1280x Microscope with HD USB camera

With a wide range of accessories for an optimal introduction to microscopy!

More details

This product is no longer in stock

179.00 CHF tax incl.

More info

BRESSER Biolux NV 20x-1280x Microscope with HD USB camera

The BRESSER Biolux NV comes with a wide range of accessories and is an ideal beginners' microscope. A unique feature of these models, the Barlow zoom system is inside the eyepiece tubes: With the barlow lens the magnification can be  varied by a factor of 2 in visual observation. This feature, together with 3 objectives and 2 interchangeable wide field eyepieces gives a magnification range from 20x to 1280x. With the mechanical desk you can move your sample precisely even when observing at high magnifications.

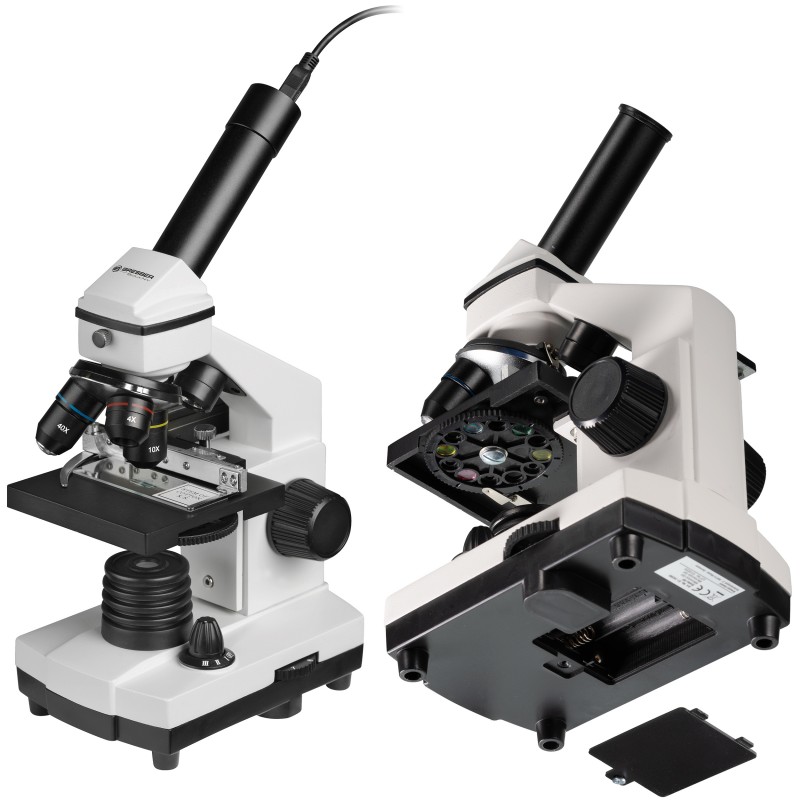

For optimal illumination a variable LED for transmitted and incident light together with a filter wheel gives the ideal light for all samples. Light from above is especially imortant to observe non transparent samples like leaves, small insects and much more. This makes microscopy for beginners very easy! The power is supplied by batteries (3x AA). A dust cover, 5 prepared slides and 5 blank slides and cover slips are included for making your own samples.

With the included HD camera you can observe your samples on the computer screen, and capture images and video with the included Windows software. The software is compatible with Windos 8.1 / 10 and Win 11. With this camera, you can always document your interesting observations and share them with others.

FEATURES

  • biological microscope with HD camera
  • LED light for transmitted and incident light
  • battery-powered
  • lots of accessories
  • incident light for objects not higher than 4mm

SYSTEM REQUIREMENTS

  • Windows 8.1, 10 or 11
  • Intel i3, i5, i7 or i9 CPU from the 2nd generation or
  • AMD FX or Ryzen CPU
  • Optical Disk Drive or internet connection for software download
  • USB 2.0

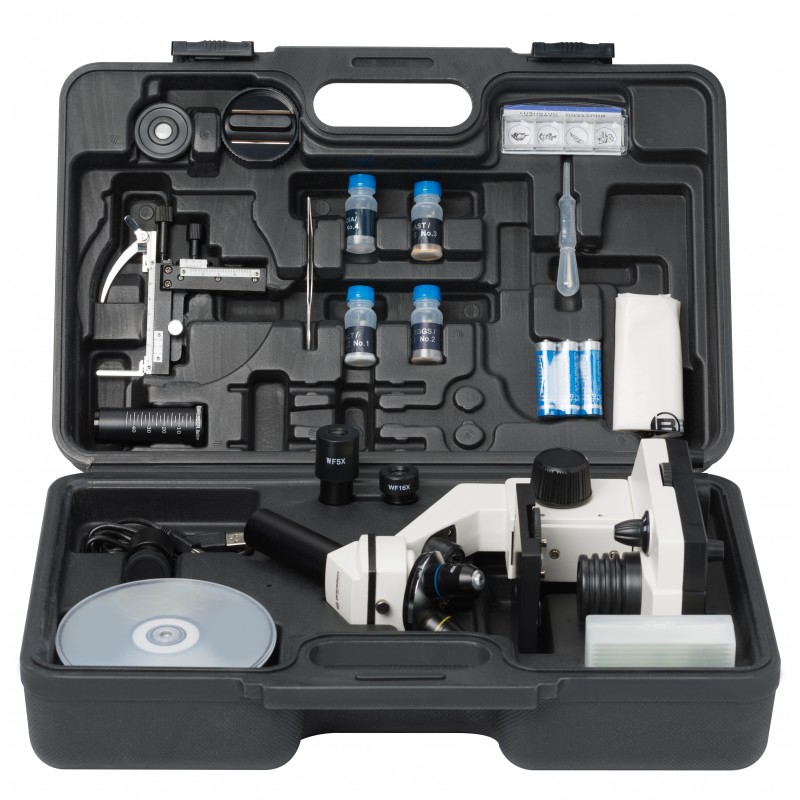

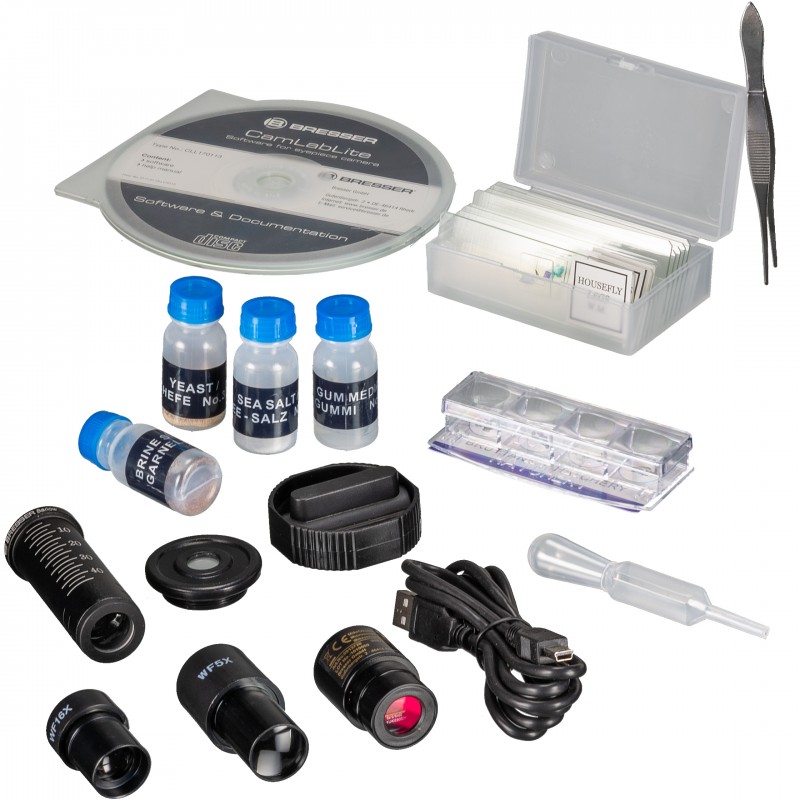

SCOPE OF DELIVERY

  • Solid metal Microscope
  • mechanical desk
  • HD camera with metal housing, resolution 1280 x 720
  • 2 eyepieces: 5x and 16x
  • 3 objectives: 4x, 10x and 40x
  • 1 Barlow lens with 2x magnification
  • Microscope tools
  • mechanical cross table
  • 5 prepared slides
  • 5 blank slides
  • 3x AA batteries
  • Dust cover and hard case

Technical Data

Field of application
Field of application
  • Biology
  • Botany
  • Education
  • Philately
  • Entomology
Focus group
Focus Group Beginners
OPTICAL SPECIFICATIONS
Optical design Biological
Magnification from 20
Magnification up to 1280
ELECTRONICS, HARDWARE & SOFTWARE
Power supply1 1.5V Batteries
Batteries needed2 3x AA (Mignon), 1.5V
Batteries included
Lighting5 Incident and transmitted light
Dimmer Dimmable lighting and switch for incident and transmitted light
Electronic eyepiece 1280x720 Pixels (HD)
Image File Formats jpg
Video Formats AVI
System requirements
  • 1 GB RAM
  • 2 GHz Processor
  • CD or DVD drive
  • USB 2.0 Port
Interfaces USB 2.0
GENERAL TECHNICAL DATA
Case Plastic Case
Colour beige
Body material Metal/plastic
Eyepiece Barrel Diameter 20 mm
View Monocular
XY cross stage Simple XY Stage
Product series Biolux
Extended warranty 5 years
DIMENSIONS & WEIGHTS
Total length 150 mm
Total width 105 mm
Total height 270 mm
Net Weight total (incl. accessories) 1.1 kg
