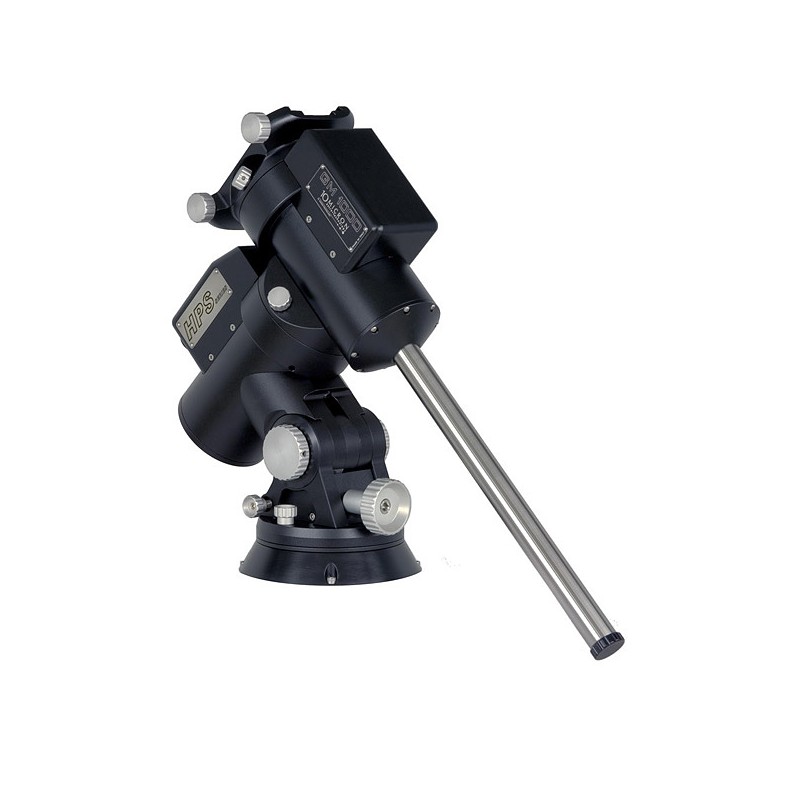

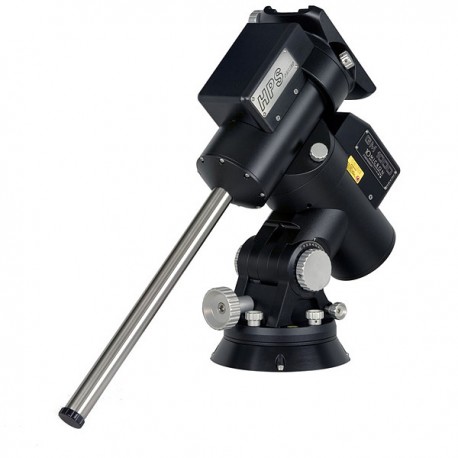

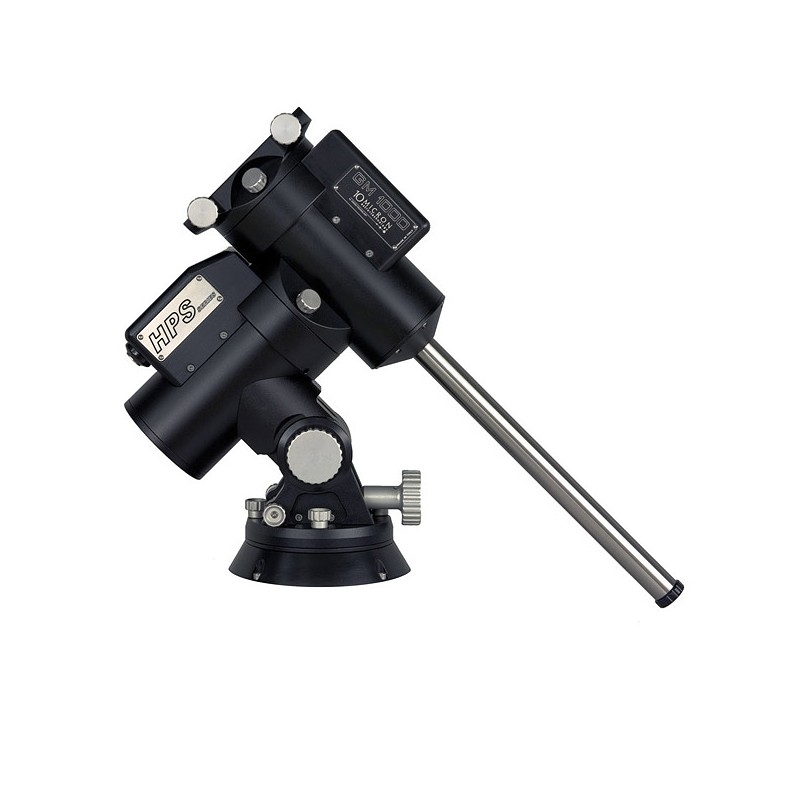

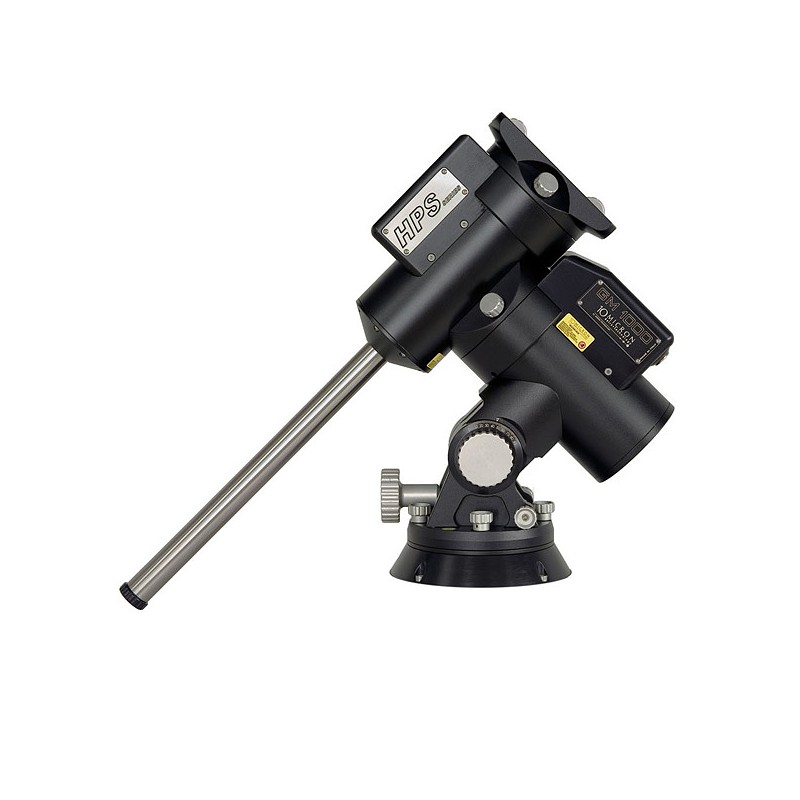

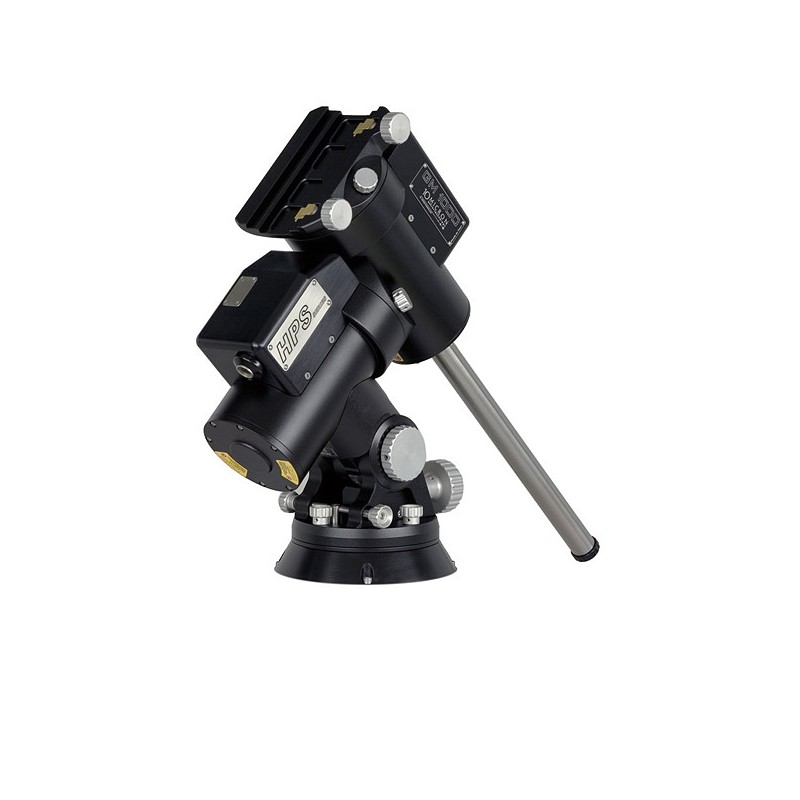

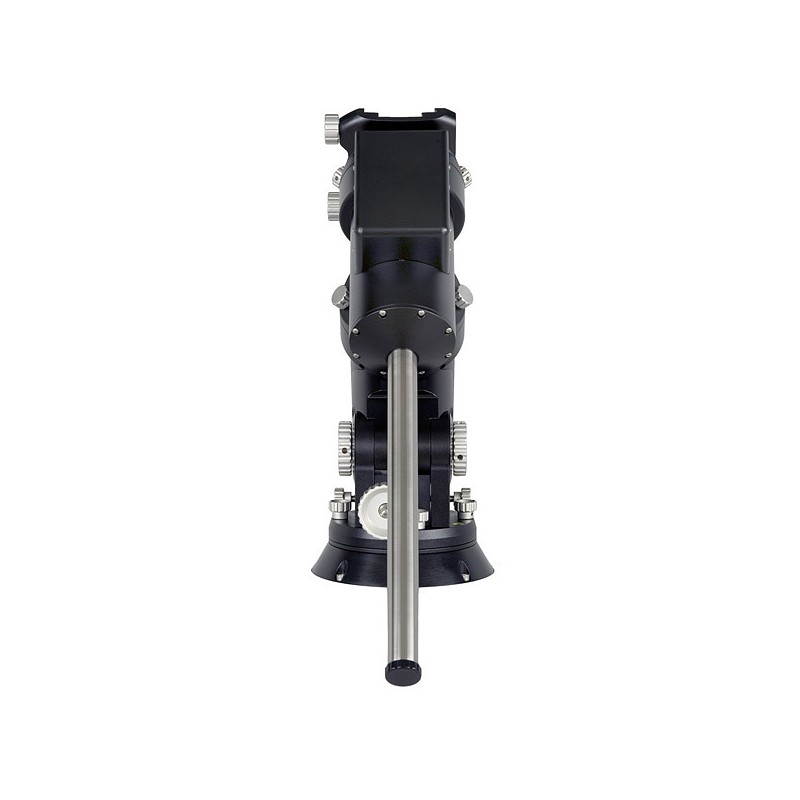

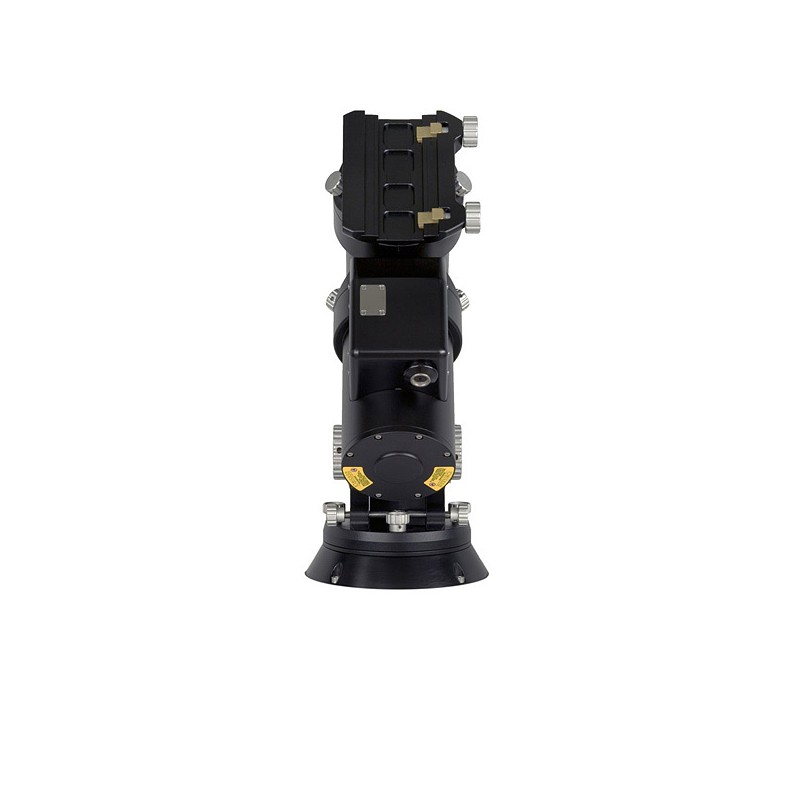

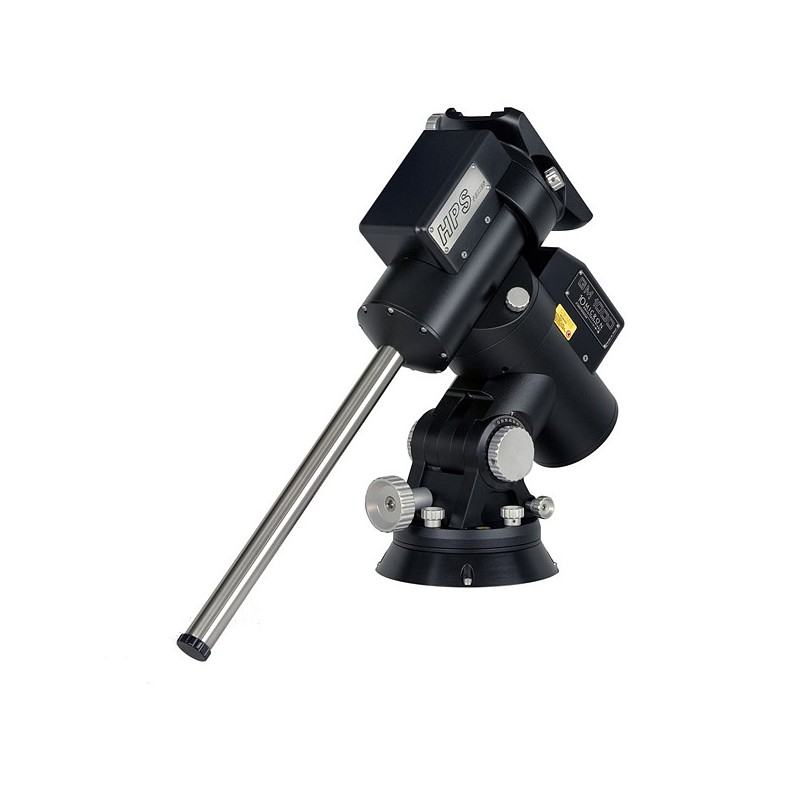

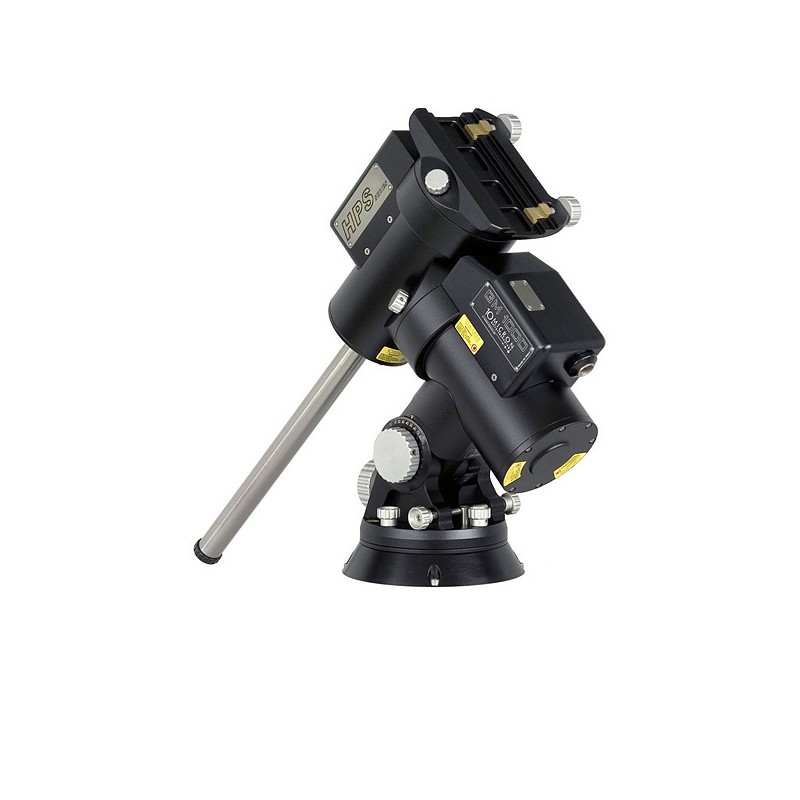

MONTUR EQUATORIALE 10Micron GM1000 HPS View larger
Previous Next

GM 1000 HPS GoTo-Mount

GM1000 HPS

New product

GM 1000 HPS GoTo-Mount

More details

1 Item

Available.

11'074.00 CHF tax incl.

More info

Description

GM 1000 HPS GoTo-Mount

Standard configuration of all HPS Mounts from 11/2015

  • 4-Lines Stand-Alone Keypad with metal housing and heated screen (#1452059)
  • embedded Computer-Controller with Linux Managment System for complete remote use of the mount incl. all functions such as satellite tracking, moon feature and more
  • Interface: RS232, Ethernet, Wi-Fi
  • Connectors for: GPS, Autoguider, Keypad, Mount, Aux and Remote Switch
  • Latest QCI software (Version 2.x)
  • Connection cables, counterweight bar
  • PC Software: Virtual Keypad, Clock Sync Tool, Multi Mount, ASCOM Driver
  • Instruction manual

HPS stands for High Precision and Speed and the mount is an advancement of the known GM 2000 QCI of 10Micron with the same proven mechanics, however, less load-carrying capacity than this - and with it highly transportable

The GM 1000 HPS reaches a Satellite tracking and positioning speed from 20 degrees / sek. with an average positioning accuracy <20" and a tracking accuracy of approx. 1"/15min (peak to peak).

The new GM 1000 HPS disposes, in addition, of high-precision Absolut-Encoder on both axes which opens absolutely new possibilities. The mount never losesits orientation, even if one axis is shifted by hand. Also after a power failure no new Alignment is necessary. In the mobile company the mount is quicker and easier to instal and to align than any conventional equatorial mount.

Technical data:

Name GM 1000 HPS
Mount type German Equatorial Mount
Weight ~ 19.5 kg – 43 lbs (mount w/o acc.)
Instrument payload capacity 25 kg – 55 lbs
Latitude range 0° – 82° (90° optional)
Azimuth fine adjustment range +/− 7.5°
Counterweight shaft 30 mm diameter, stainless steel, weight 1.7 kg – 3.7 lbs
Axes 30 mm diameter, alloy steel
Bearings Pre-loaded tapered roller bearings
Worm wheels 250 teeth, 125 mm diameter, B14 bronze
Worms 20mm diameter, tempered alloy steel, grinded and lapped
Motors 2 axes AC servo brushless
Power supply 24 V DC
Power consumption ~ 0,5 A while tracking ~ 3 A at maximum speed ~ 4 A peak
Goto speed Adjustable from 2°/s to 15°/s
Transmission system Backlash-free system with timing belt and automatic backlash recovery
Pointing accuracy < 20" with internal 25-stars software mapping - max.100stars; possibility to use the Model Maker software for automated alignment operation.
Average tracking accuracy ~ 1" typical for 15 minutes ~ 0,6" RMS with internal 25-stars software mapping and compensation of system flexures and polar alignment errors
Security stop +/− 30° past meridian in r.a. (software) +/− 45° past meridian in r.a. (mechanical)
Communication ports RS–232 port; GPS port; autoguide ST-4 standard port; Ethernet 10/100/1000 port
Database Stars: by Common Names, Bayer designation, Flamsteed designation, Bright Star Catalogue, SAO, HIP, HD, PPM, ADS, GCVS. Deep-sky: M, NGC, IC, PGC ,UGC limited up to mV = 16. Solar system: Sun, Moon, planets, asteroids, comets, artificial satellites. Equatorial and altazimuth coordinates. User defined objects. Quick slewing positions recalls for frequent focusing or useful operation.
Firmware features User defined mount parking positions, 2stars and 3stars alignment function, up to 100 alignment stars for modeling, correction of polar alignment and orthogonality errors, estimate of average pointing error, storage of multiple pointing models, sidereal, solar and lunar tracking speed adjustable on both axes, declination-based autoguide speed correction, adjustable horizon height limit, pointing and tracking past meridian, assisted electronic balance adjustment, automatic (ClockSync proprietary software) manual or GPS time & site coordinates synchronization, leap seconds support and full accounting for the UT1-UTC timescale, configurable atmospheric refraction, direct Baader dome control via RS-232, network settings, comets and asteroids filter, multi-language interface. Remote Assist via Internet connection with dedicated server.
Keypad control Rugged keypad with metal housing and reliable professional micro switches, Large graphic display – heated for operation under lowest temperatures, dimmable display and keyboard with back-lit keys, five information menu lines for coordinates, object information and symbols showing mount status and active external connections and accessories. All the functionality of the mount is available through the keypad without requiring an external PC
PC control Remote control via RS-232, Ethernet, proprietary 10Micron ASCOM driver, LX200 compatible protocol, update of firmware and orbital elements of comets, asteroids and artificial satellites via RS-232 or Ethernet, PC virtual KeyPad control panel via RS-232 or Ethernet, Integrated Wi-Fi for connection with smartphones and tablets and any wireless network

Scope of supply:

  • Mount GM 1000 with precision on-axis Absolute-Encoders
  • Motor control box with onboard-intelligence (Linux-processor)
  • Up-to-date QCI Software (Version 2.x)
  • Cables
  • Counter weight shaft
  • #1452061 |  Stand-Alone hand control unit
  • #1451090 | Tripod / Pillar - Adapter
  • #1451092 | Standard base adapter flange for GM 1000
  • #1451066 | Special foam fitted transport cardboard box

Import charges (customs duties and shipping costs) will be calculated and charged separately. Contact us for more information.
