New generation M54 filter drawer
Product Description
New 2″ filter drawer featuring the anti-light-leaking design that can effectively solve the light leaking issue under long exposure.
Double strong magnets adopted for stronger adsorption, easier installation and pulling out.

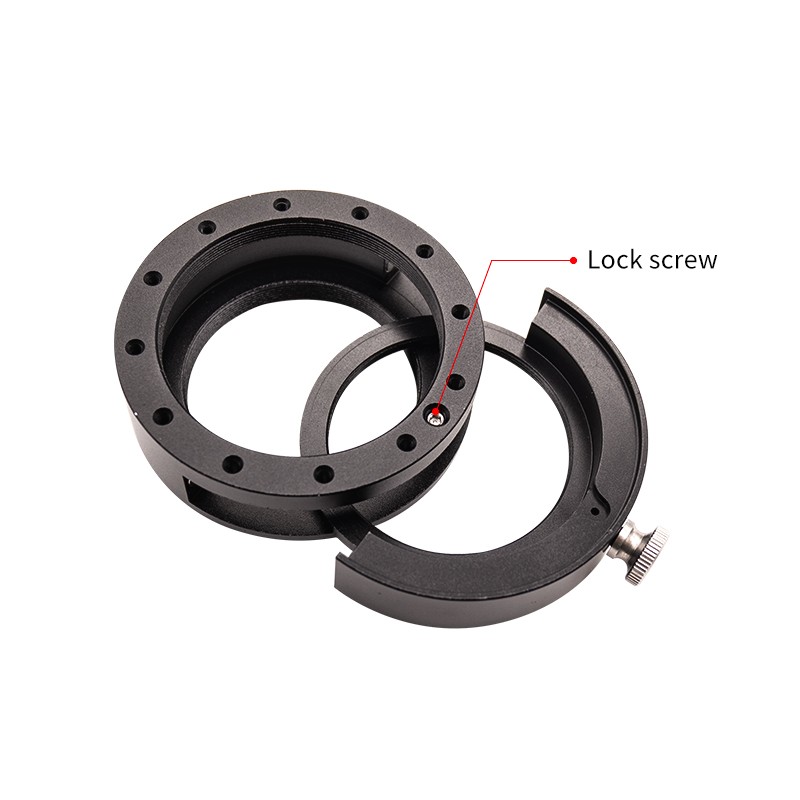

Lock screw on the side for you to adjust the tension of the holder to eliminate gap. Double insurance.

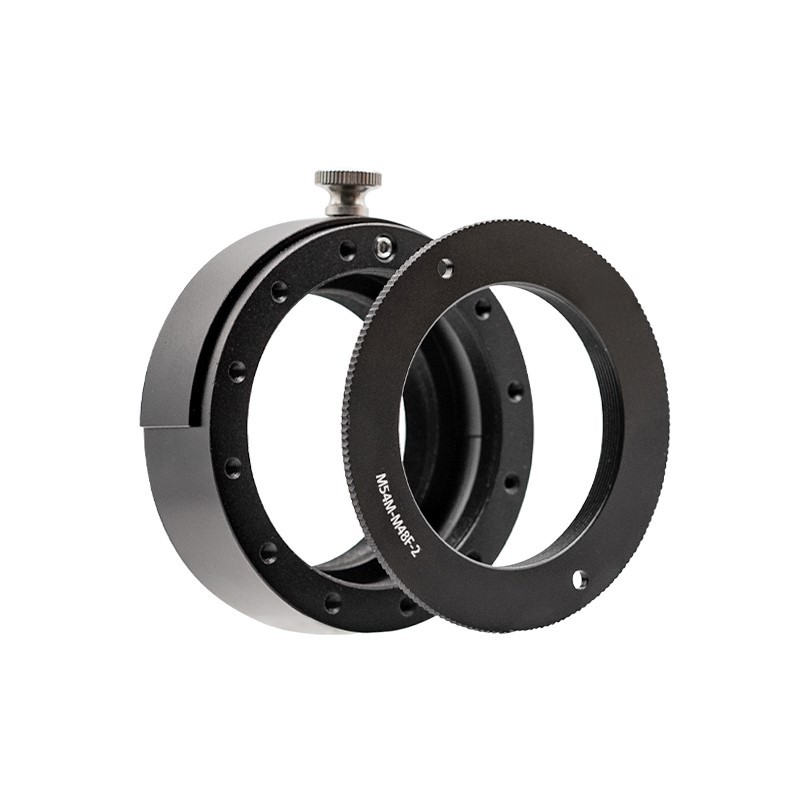

Additional adapters provided with the filter drawer for equipment connection.
The differences between the old and new filter drawer
What’s in the Box?
M54 filter drawer:
Filter drawer *1M54-M48F-2mm *1
Mechanical Diagram
M54 filter drawer:

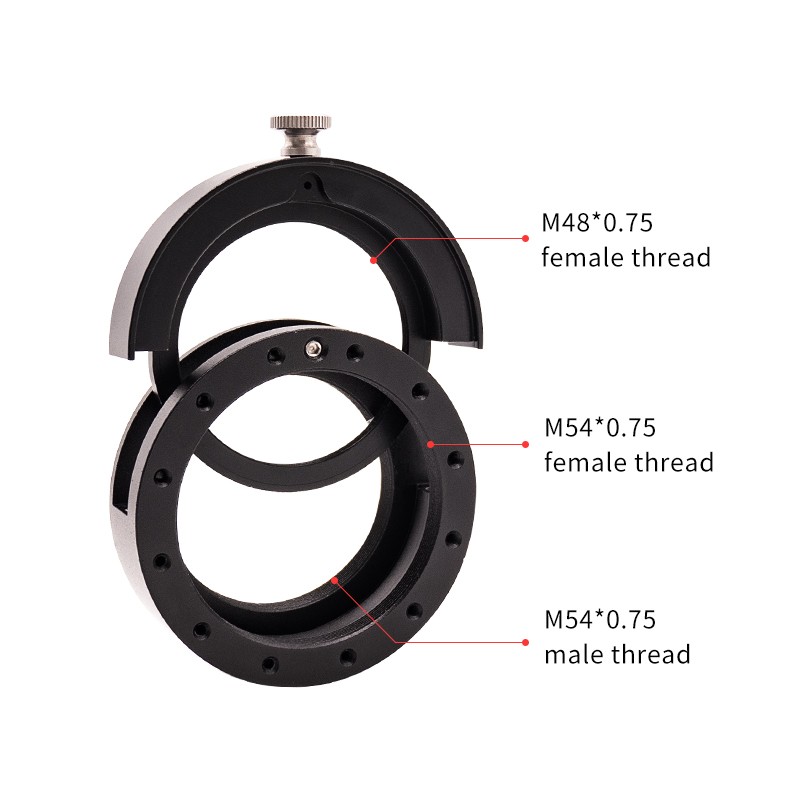

Diameter 70mm * Thickness 20mmM54 * 0.75 male(external) thread (camera side)M48 * 0.75 female(internal) thread (filter end)M54 * 0.75 female(internal) thread (telescope side)
Suitable for 2-inch astronomical filters and full frame cameras, such as ASI6200 and ASI2400.
