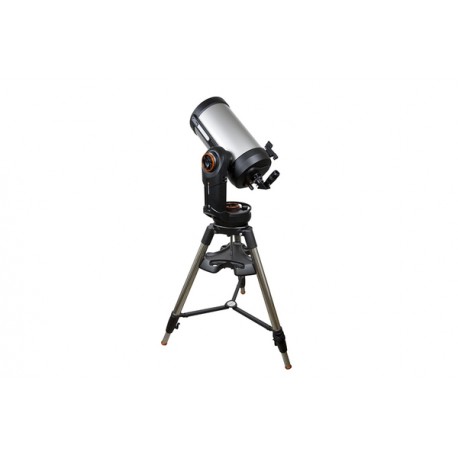

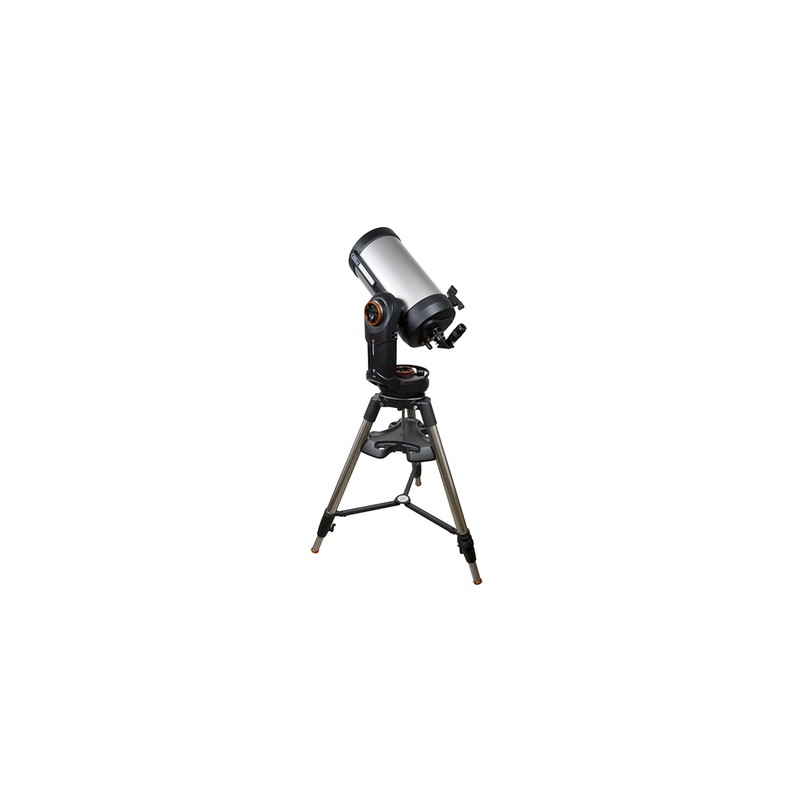

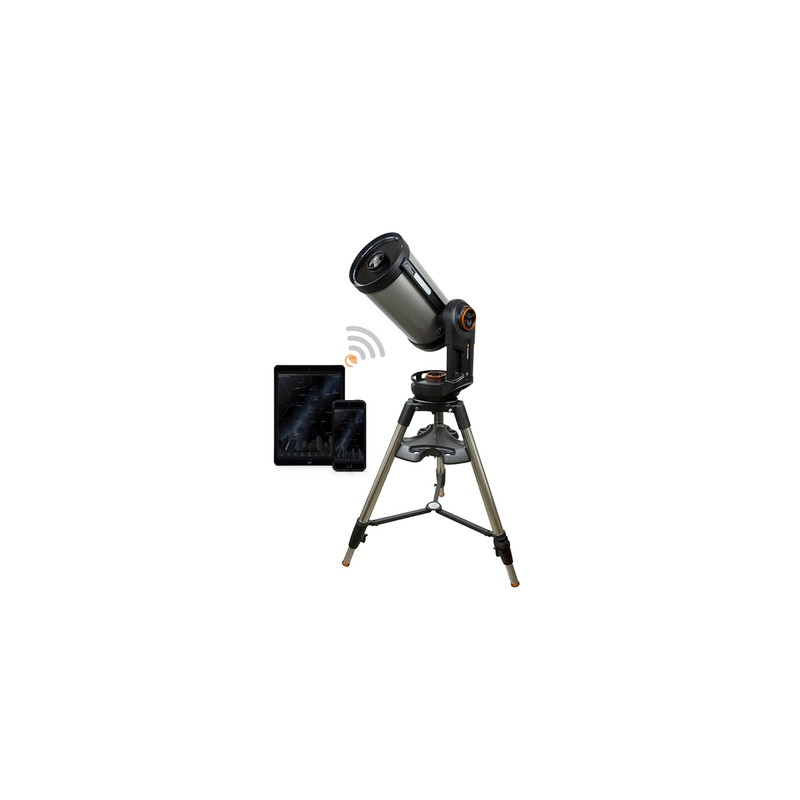

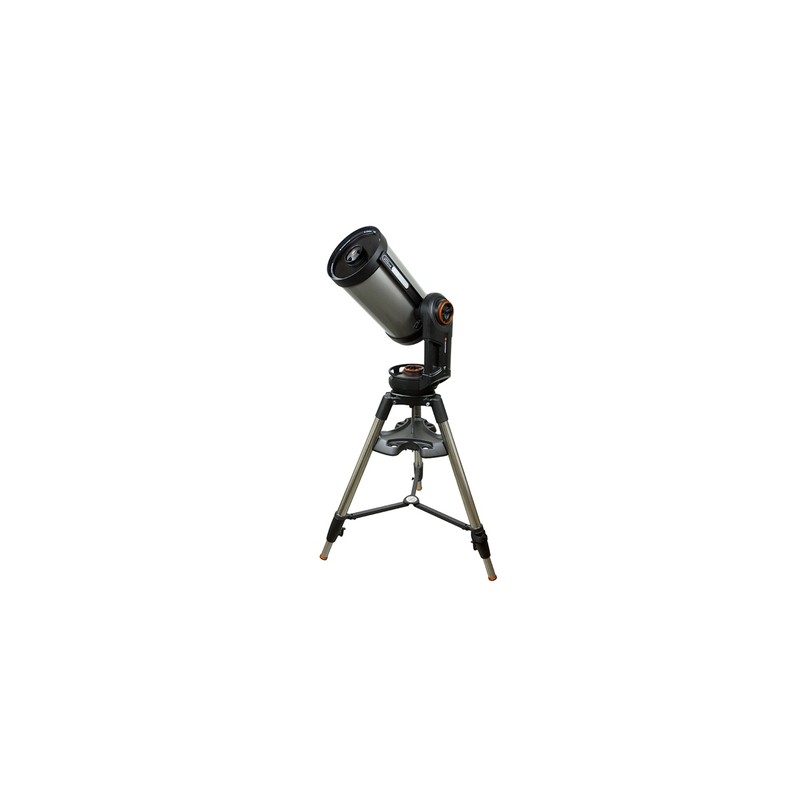

CELESTRON Evolution 9.25" SCT
New product
0 Item Items
Please contact us to know the delivery time of this item
Warning: Last items in stock!
Availability date:
Evolution -the next step in portable telescopes!
Celestron SC telescopes:
Despite the long focal length of these telescopes, the OTA itself has a very short length, making the system a compact telescope which is extremely easy to transport. Light first hits an aspherically figured Schmidt corrector plate and is then thrown onto a spherical main mirror. This reflects the light back up, throwing it onto a secondary mirror which subsequently throws it back in the direction of main mirror. The light then passes through a central hole in the main mirror and into the focuser at the bottom of the OTA. Thus the system is closed and hence does not suffer from air turbulence which could degrade the image. Of course this also means that the system is optimally protected from dust. The Schmidt plate is multi-coated, ensuring bright images which do not suffer from stray light reflections.
This telescope provides a very good image, boasting high contrast and definition and provides a lot of pleasure when planetary observing. The Schmidt-Cassegrain design provides a good all-round system suitable for both observing and astrophotography andwith an enormous range of optional accessories available. Using the bottom end of the OTA to look through means easy orientation. The system is also optimal for occasional terrestrial observing, e.g. birdwatching at close range. Celestron SC telescopes have an aperture ratio of around 1:10 which, so astrophotography is also very easily possible.
Main mirror focusing means a very large range of focus is made available, which allows virtually any common accessory to be used. Two pre-loaded ball bearings are used in the main mirror focus positioning mechanism in order to prevent 'mirror shift' - a typical problem when using simple bushings. The use of high quality materials such as CNC-milled aluminium components, cast steel and stainless steel guarantees extreme robustness with low weight. This means that a very heavy mount is unnecessary, not always the case for other telescope designs.
Features of these telescopes:
Optics |
|
Coating | Starbright XLT |
Type | Reflector |
Type of build | Schmidt-Cassegrain |
Tube material | Aluminium |
Resolving capacity | 0,49 |
Focal length (mm) | 2350 |
Limit value (mag) | 13,7 |
Aperture (mm) | 235 |
Max. useful magnification | 470 |
Aperture ratio | 10 |
Tube length (mm) | 560 |
Reflector |
|
Secondary mirror obstruction | 36 |
Eyepiece holder |
|
Connection ( to eyepiece) | 1,25" |
Type of build | SC thread |
Mount |
|
Mounting type | Azimuthal |
GoTo control | yes |
Encoder | no |
GoTo control |
|
Tracking speeds | sideral, solar and lunar |
Database | 120.000 |
Alignment method | SkyAlign, 3-Star Align, Solar System Align |
Software | NexStar |
GoTo Language | german, english, french, spanish, italian, russian |
GPS | no |
Tripod |
|
Type of construction | Dreibein |
Material | Steel |
Included accessories |
|
Deviating optics | 1.25", 90° star diagonal |
Finder scope | Red dot finder |
1.25'' eyepieces | 13mm, 40mm |
General |
|
Series | NexStar Evo |
Total weight (kg) | 21,1 |
