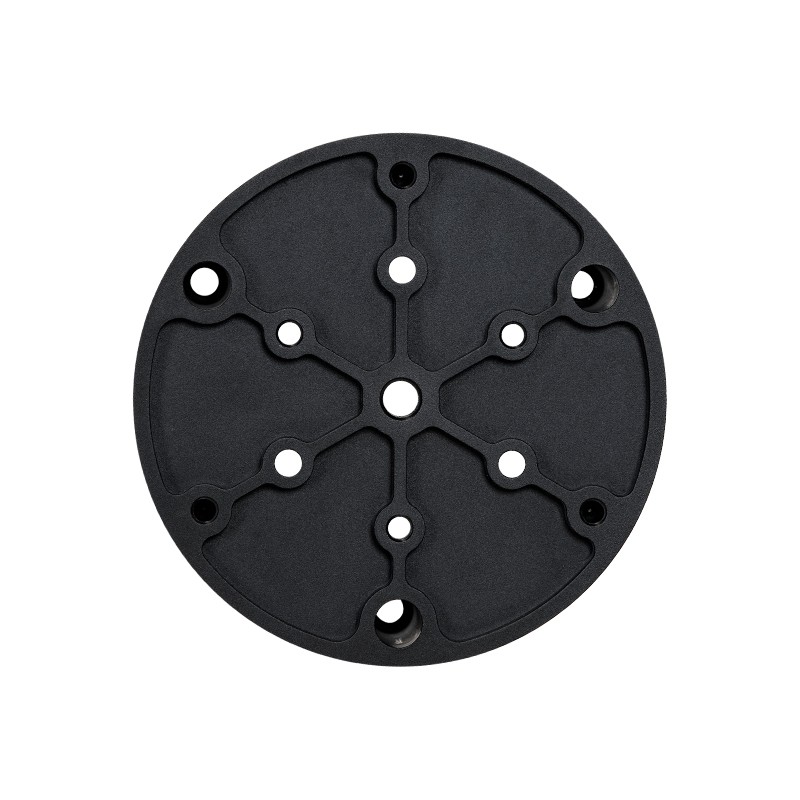

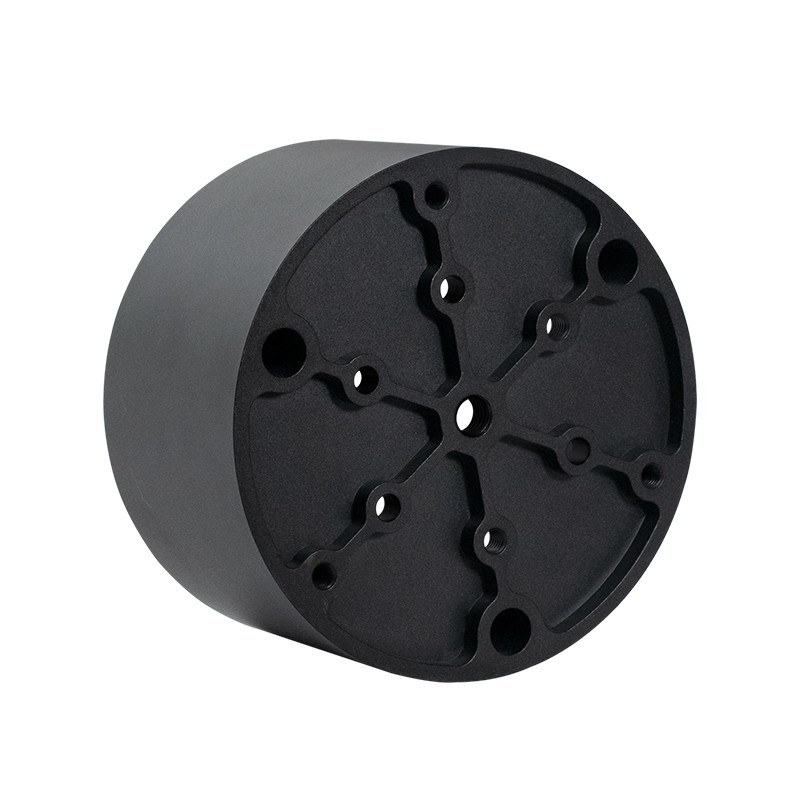

70 mm column extension designed for use with TC40 tripods and the ZWO AM5 mount.

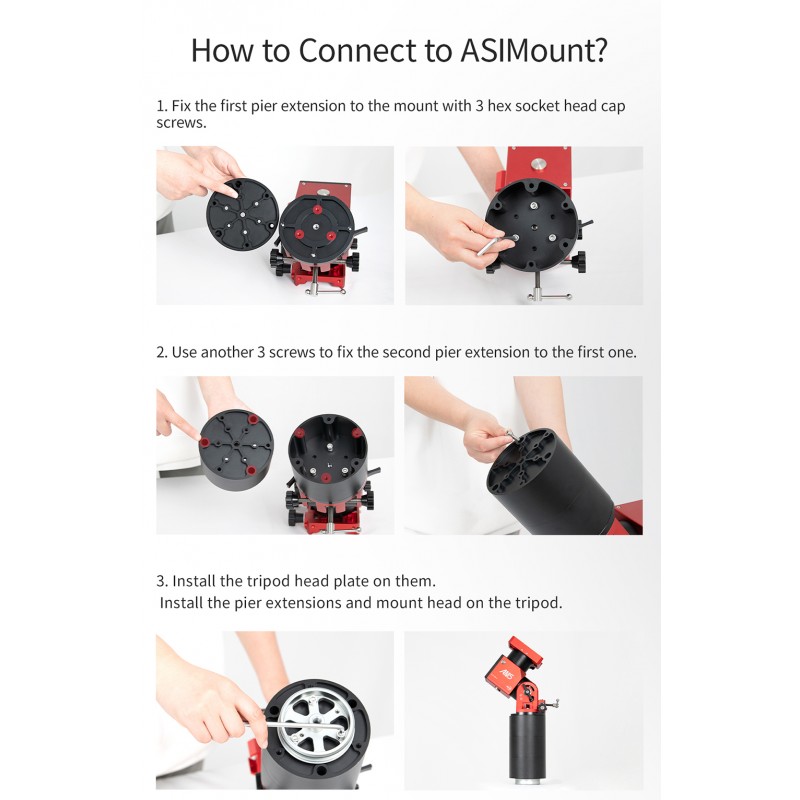

Please note that the initial height increase is only possible by stacking two 70 mm extenders. Once the system has been inverted, it is then possible to add additional single extenders individually.

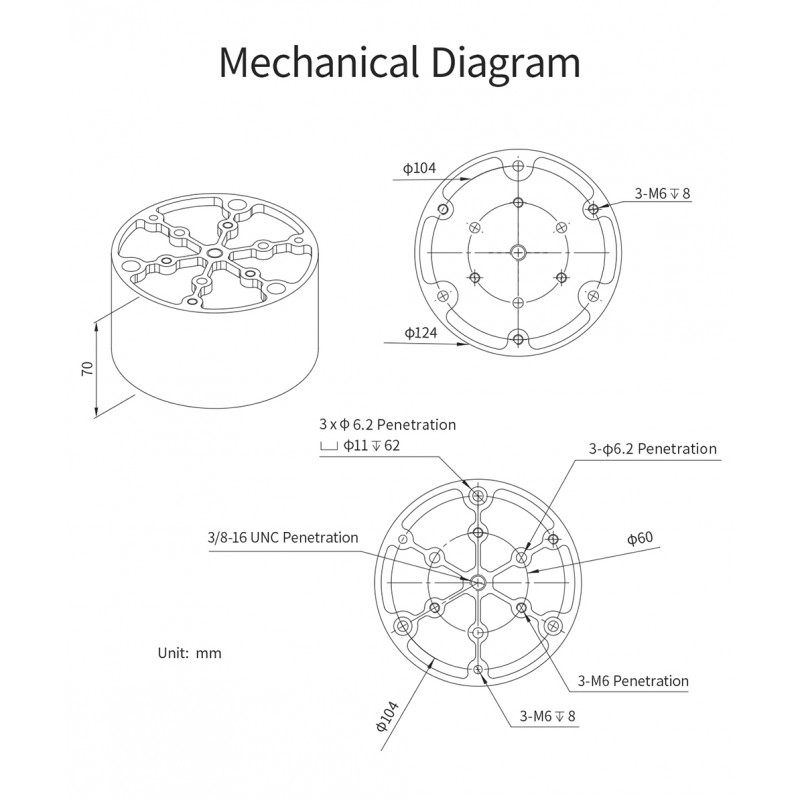

Specifications:

• Height: 70 mm

• Diameter: 124 mm

• Load capacity: 50 kg

• Material: CNC-machined aerospace-grade aluminium

• Finish: matte black

• Weight: 0.5 kg

Included items:
1 column extension for AM5 mount / TC40 tripod

ZWO Pier Extension for AM5 Mount

Strong Stability | Large Load Capacity

Aircraft Grade Aluminum

Thanks to the aircraft grade aluminum, the pier extension features great capacity of high temperature resistance and wear resistance. It's durable and hard to deform, ensuring a higher strength and better rigidity, and a large load capacity up to 50kg.

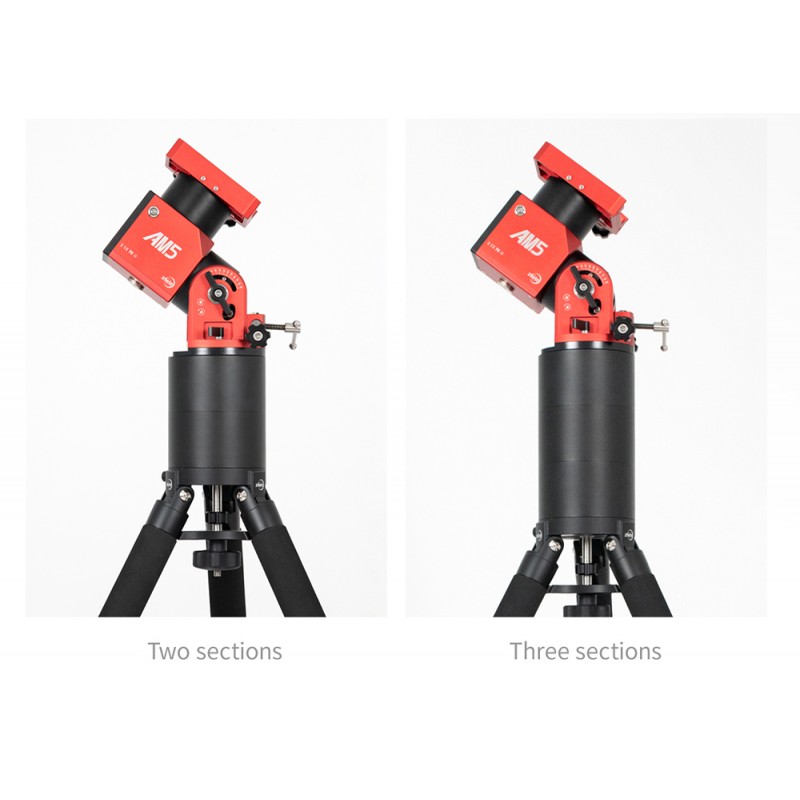

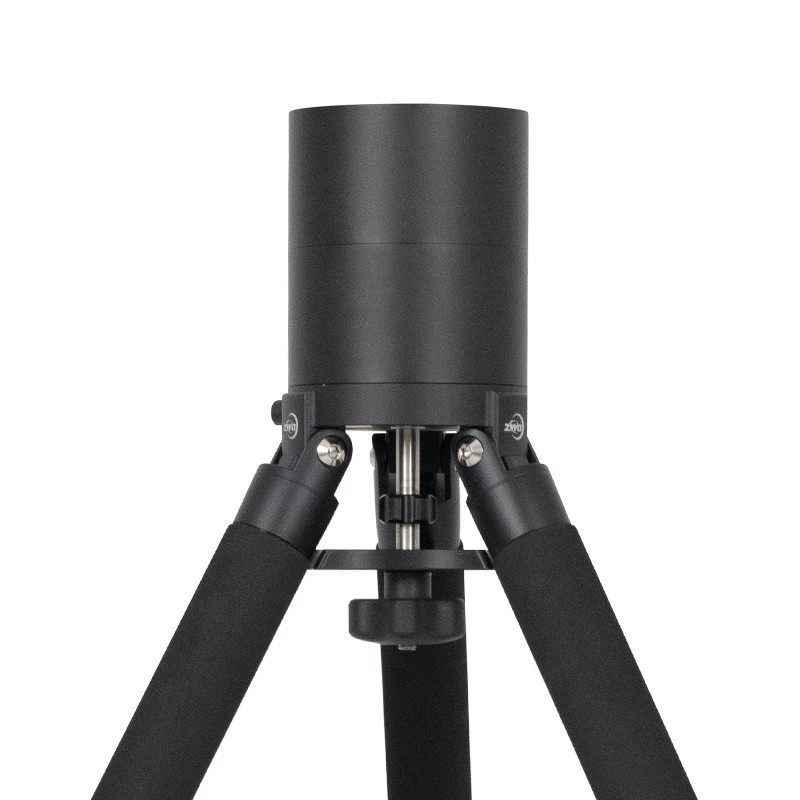

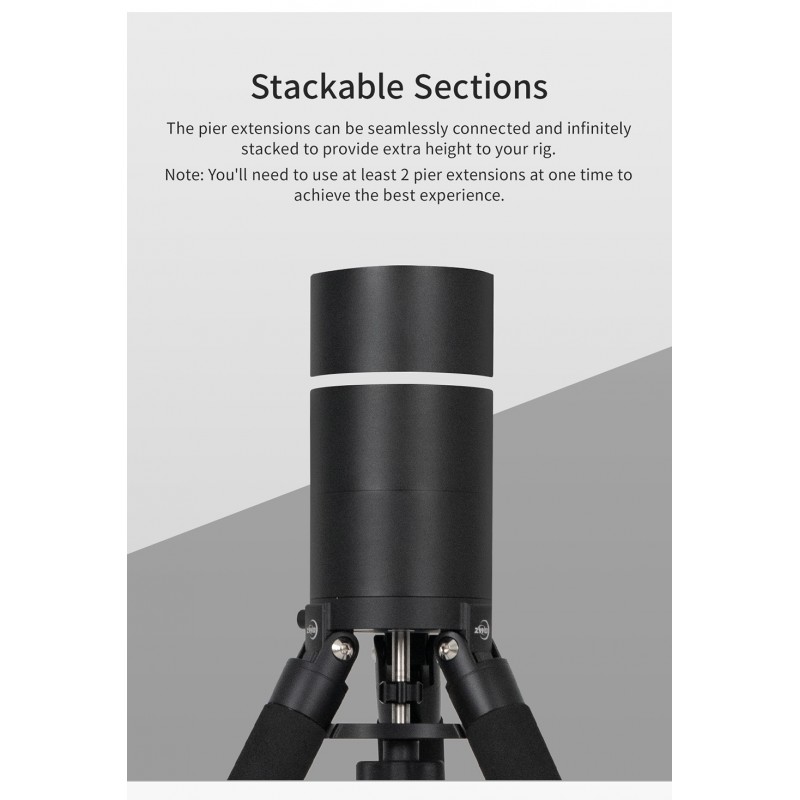

Stackable Sections

The pier extensions can be seamlessly connected and infinitely stacked to provide extra height to your rig. Note: you'll need to use at least 2 pier extensions at one time to achieve the best experience.

Hollow Carved Design

With its lightweight design, one single pier extension only weights 0.5kg, which will greatly decrease the burden during transportation.

Dark Black Tone with Matte Surface

The match of the black pier extension and red ZWO mount is quite classic and artistic. The pier extension itself also features great texture.

• included items

  • 1 Pier Extension
