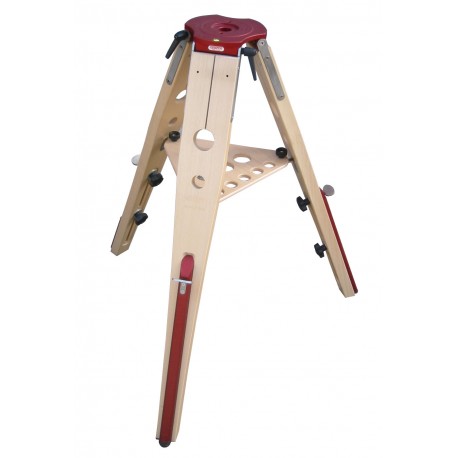

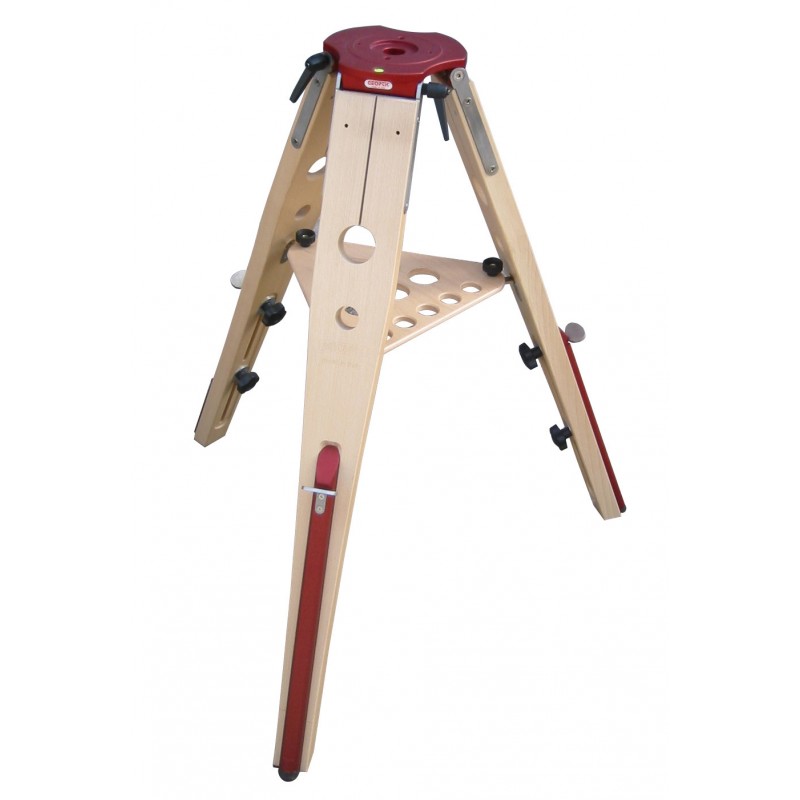

Geoptik Tripod HERCULES for astronomical mounts - Max load 120kg (DEMO)

For this tripod we offer a connection for mounts GK300, EQ6, Atlas, and adapters also GM8 Losmandy mounts, G11 (# 30H150) and HEQ5 (# 30A230).

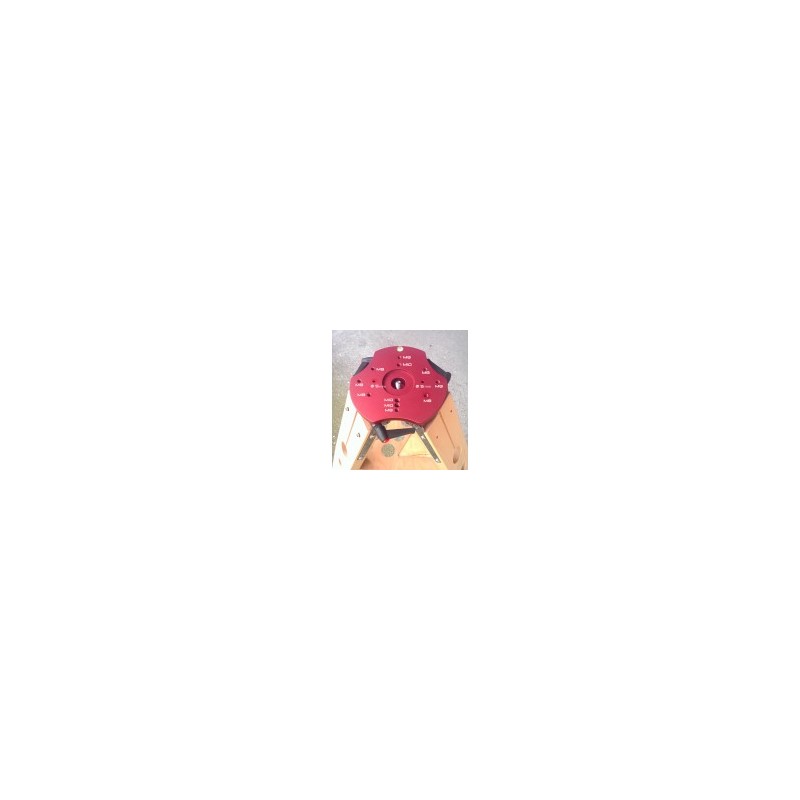

The base is finely CNC machined and anodized.

The beech wood is used "first choice" and treated for outdoor use. We chose this material because of its excellent stability and vibration damping; also not afraid of heavy loads.

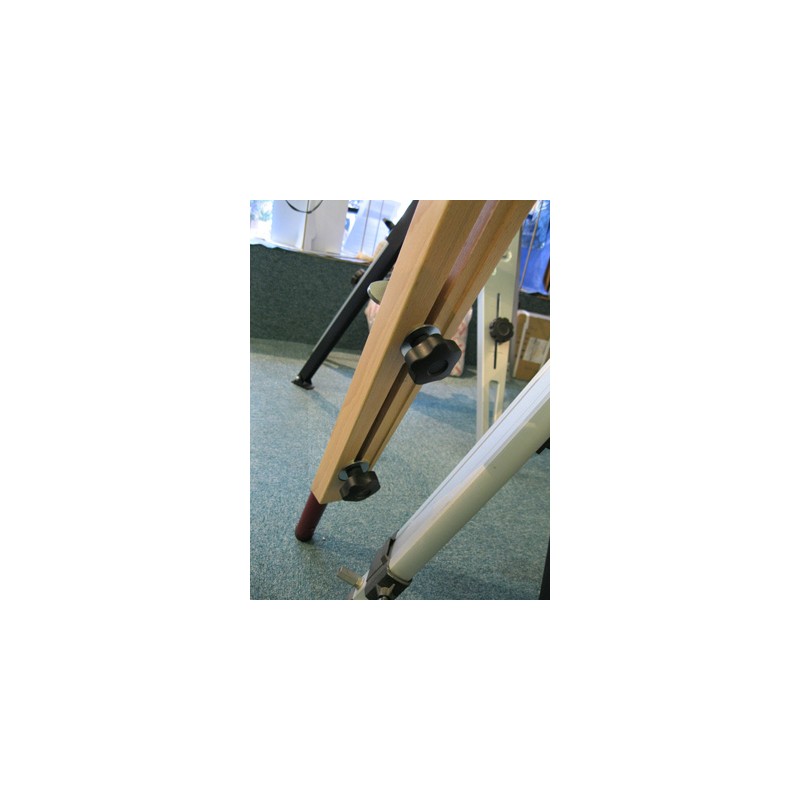

The height of the tripod can range from 700 mm to 850 mm through terminal aluminum.

This extension is reversible, offering the possibility of a rubber tip or metal. The triangle, laminated beech, has 5 holes for eyepieces 31.8 and 3 holes for eyepieces 50.8. It also has a machining "container" to hold small parts (screws, filters, etc.)

Other holes in the legs allow you to store three ocular Extra equipment by 50.8 mm.

Tightening the legs to the plate through the " screws recovery "that allow a perfectly secure and stable extraordinary.

You can certainly see the practicality of this model, with a weight of only 7.5 kg and a minimum cluttered is easily transportable.

Maximum load is 120 kg

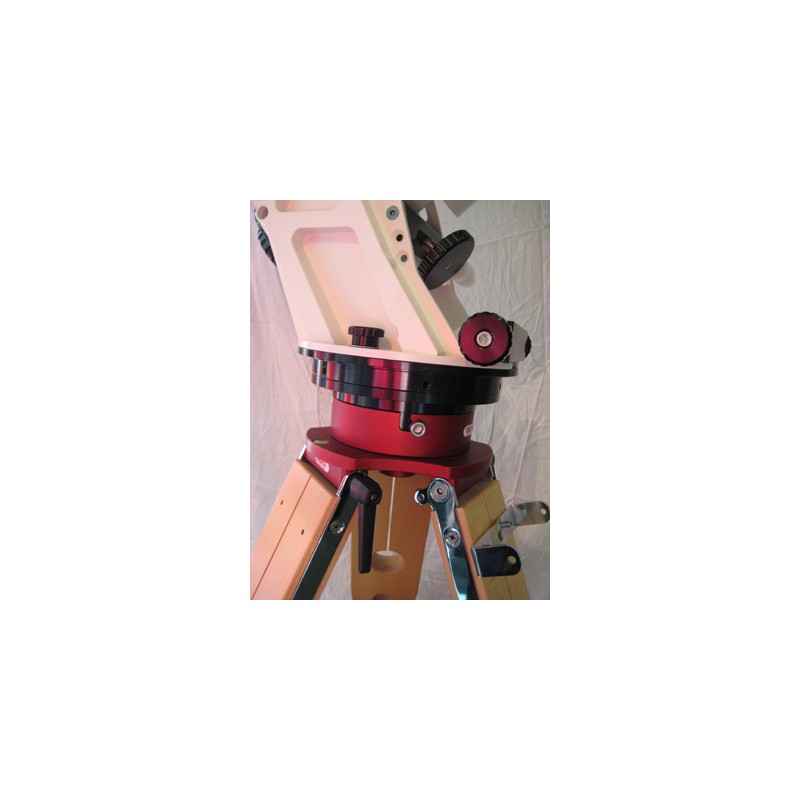

The tripod is ready for the Skywatcher EQ6 mount. For other mounts you need an adaptor:


 Connection to Vixen GP, Skywatcher EQ5, HEQ5, Celestron Advanced Mount Goto ...

Connection to Losmandy GM8 and G11 mounts
