ASTROMANIE OCULUS 2600C PRO
OCULUS 2600C PRO
Nouveau produit
Astromanie Oculus 2600C Pro
La caméra OCULUS 2600C PRO est conçue spécifiquement pour l'astrophotographie. Elle est principalement utilisé pour la prise d'images du ciel profond, car l'appareil photo est doté d'un capteur CMOS refroidi, d'un bruit de lecture ultra-faible et d'une lueur nulle. Tutefois, une utilation pour de la photo planétaire, n'est pas esclue.
2 Produits
Disponible.
En savoir plus
Astromanie Oculus 2600C Pro
Les caméras OCULUS sont fabriquées par la très renommée maison ToupTek, entreprise leader dans la fabrication des caméras utilisées dans le domaine de la science et du médical.
La caméra OCULUS 2600C Pro est conçue spécifiquement pour l'astrophotographie. Elle est principalement utilisée pour effectuer des prises de vues du ciel profond, car l'appareil photo est doté d'un capteur CMOS refroidi, dont le bruit de lecture est ultra-faible et l'amp-glow inexistant. Toutefois, elle peut AUSSI être utilisée pour effectuer des photos planétaires. Ses performances extraordinaires et son utilisation intensive vous offriront une grande expérience d’astrophotographie.
- IMX 571 Color CMOS Sensor
- Resolution: 6224 x 4168
- 3.76 um Square Pixels
- APS-COpticalFormat
- 16-bitADC
- 512 Mbyte Memory
- PreciseTemperatureRegulation
- G Sensitivity: 484.6mv with 1/30s
- ZeroAmp-Glow
- Ultra-Low Noise: 1.16 to 2.35e- (Low Noise Mode)
- Support Low Noise Mode/ High Frame Rate Mode (6.8 FPS at all Pixel Readout 16 bit)
- SNR Max: 47.1 dB (Low Noise Mode)
- Dynamic Range: 86.8 dB (Low Noise Mode)
- -35°C below Ambient under Short Exposure/ -40°C under Long Exposure Time(> 1s)
Specifications
|
Sensor |
Sony IMX571 back illuminated sensor - Color |
|
|
Diagonal |
28.3 mm |
|
|
Image Area |
23.4mm x 15.7mm |
|
|
Resolution |
26 mega pixels(6224*4168) |
|
|
Pixel size |
3.76 µm x 3.76 µm |
|
|
Spectral Range |
380-690nm (with IR-cut Filter) |
|
|
ADC: |
16 bit native |
|
|
Cooling: |
- Two-stage TE-cooling System 30-35 °C below Ambient Temperature - 35 K below ambient under short exposure - 35 K under long exposure time (> 1s) |
|
|
Sensitivity |
The sensor G Sensitivity of OCULUS 2600C PRO is 484.6mv with 1/30s. The sensitivity is measured with a testing standard lens with CM500S (t = 1.0 mm) as an IR-cut filter and image at F8.0. If the image is measured at F5.6, the result could have been 2 times of the current value. |
|
|
Dark signal |
0.039 mV with 1/30s |
|
|
Binning |
1x1, 2x2, 3x3 |
|
|
Max FPS at Resolution (USB 3.0) |
16 bit |
8 bit |
|
|
6.8 FPS @ 6224*4168 28 FPS @ 3104*2084 63 FPS @ 2064*1386 |
13.2 FPS @ 6224*4168 37.1 FPS @ 3104*2084 110 FPS @ 2064*1386 |
|
Max FPS at Resolution (Low Noise, USB 3.0,) |
16 bit |
8 bit |
|
|
0.6 FPS @ 6224*4168 3.6 FPS @ 3104*2084 8.5 FPS @ 2064*1386 |
1.2 FPS @ 6224*4168 7.0 FPS @ 3104*2084 15.7 FPS @ 2064*1386 |
|
Max FPS at Resolution (USB 2.0) |
16 bit |
8 bit |
|
|
3.4 FPS @ 6224*4168 (Low Noise Mode is only available in All Pixel Readout Mode) |
12.7 FPS @ 6224*4168 (Low Noise Mode is only available in All Pixel Readout Mode) |
|
Max FPS at Resolution (Low Noise, USB 2.0) |
16 bit |
8 bit |
|
|
0.3 FPS @ 6224*4168 (Low Noise Mode is only available in All Pixel Readout Mode) |
1.2 FPS @ 6224*4168 (Low Noise Mode is only available in All Pixel Readout Mode) |
|
Shutter-Typ |
Rolling Shutter |
|
|
Exposure |
0.1ms~3600s |
|
|
Gain |
1x - 100x |
|
|
SNR |
47.1 dB |
|
|
Dynamic Range |
86.6 dB (Low Noise Mode) |
|
|
Read Noise (LCG) |
2.6 – 1.14 e- |
|
|
Read Noise (HCG) |
2.35 – 1.16 e- |
|
|
QE Peak |
>80% |
|
|
Full Well |
51ke- |
|
|
ADC |
16bit |
|
|
DDR3 Buffer |
512MB (4Gb) |
|
|
Connection Port |
USB3.0/USB2.0 |
|
|
Protect Windows |
IR CUT |
|
|
Spectral Range |
380-690nm (with IR-cut Filter) |
|
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
|
|

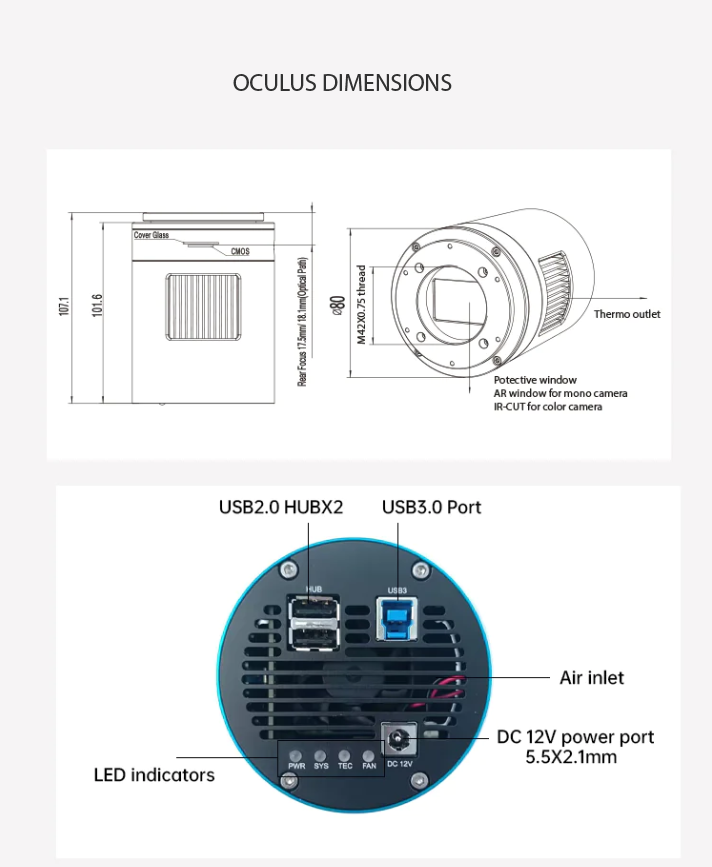

Camera Dimensions |
Diameter 89 * Height 103 (mm) |
|
|
Camera Weight |
0.718kg |
|
|
Back Focus Distance |
17.5mm |
|
|
Cooling: |
Two stage TEC Peltierelement |
|
|
Effective Cooling Temp: |
-30°C below ambient under short exposure/ -35°C under long exposure (> 1s) |
|
|
Supported OS |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) |
|
|
Amp glow |
no amp glow |
|
|
Power requirements: |
12 V, 3 A |
|
|
Telescopic connection: |
M42x0,75 inner thread |
|
|
Working distance from the internal thread to the sensor: |
17,5 mm |
|
|
Other specifications |
- Support low noise mode/ high frame rate mode - Hardware ROI - Support HCG mode/ LCG mode - Zero Amp glow - Sensor tilt adjustment - M54 x 0.75 mount - Native ASCOM/WDM driver for easy connection with 3rd party astrophotography software - ToupSky for Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit), OSx(Mac OS X), Linux - Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
